Details

SPECIFICATIONS

ABXY Switch Type: Tactile switch

Battery Included: Yes

Bumpers Switch Type: Tactile switch

Certification: CE,FCC,RoHS

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: Nintendo Switch,Nintendo Switch OLED

Compatible Platform: Nintendo Switch,Android,iOS

Compatible with: Nintendo Switch

Hall Effect: No

High-concerned chemical: None

Interface Type: Bluetooth

Joystick Sensor Module Brand/Type: None

Model Number: SZ-933B

Package: Yes

RGB lighting joysticks: Yes

Trigger Button Type: Hall-Linear

Type: Gamepads

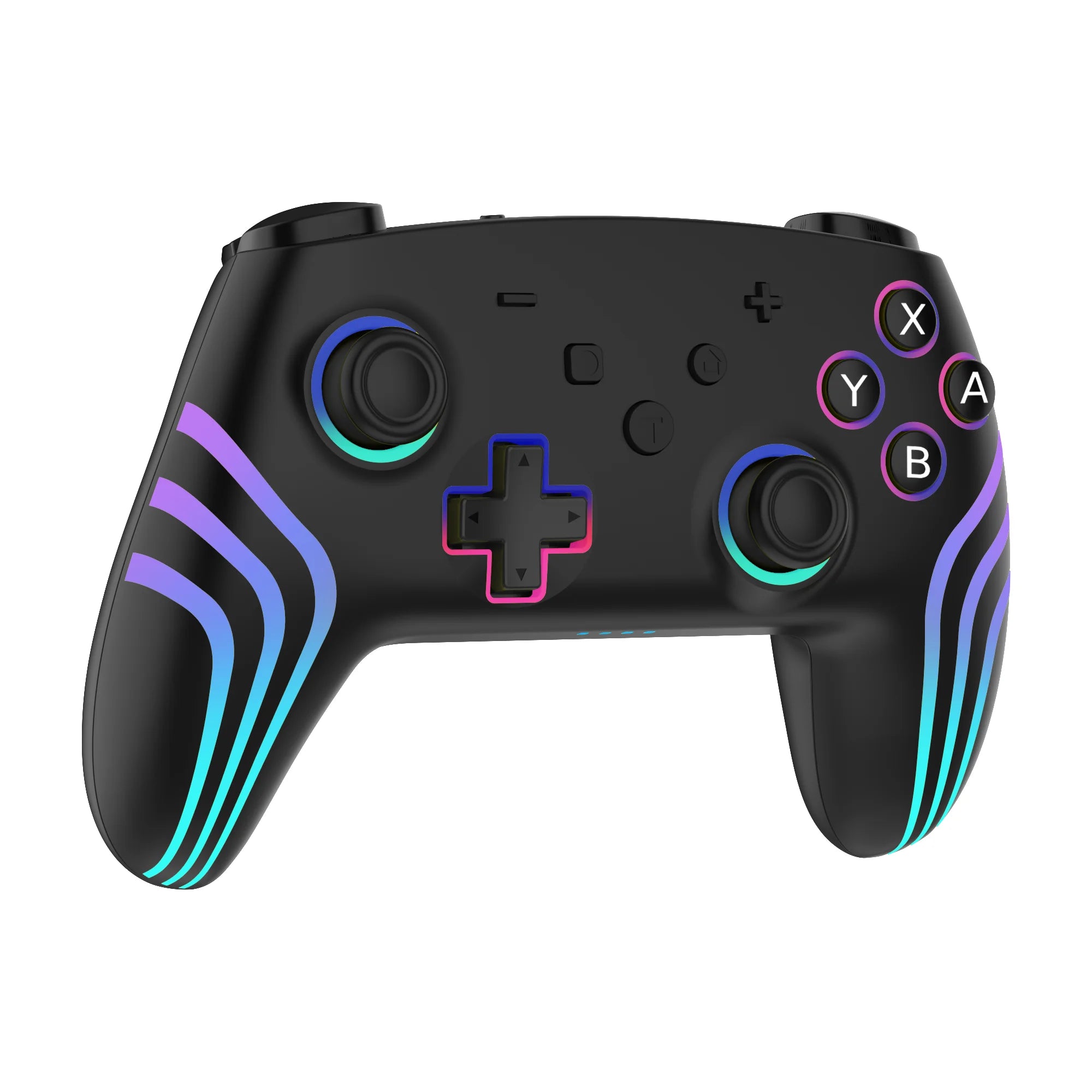

SZ-933B Wireless Controller for Nintendo Switch with Six Axis Gyro Sensor

Product Description

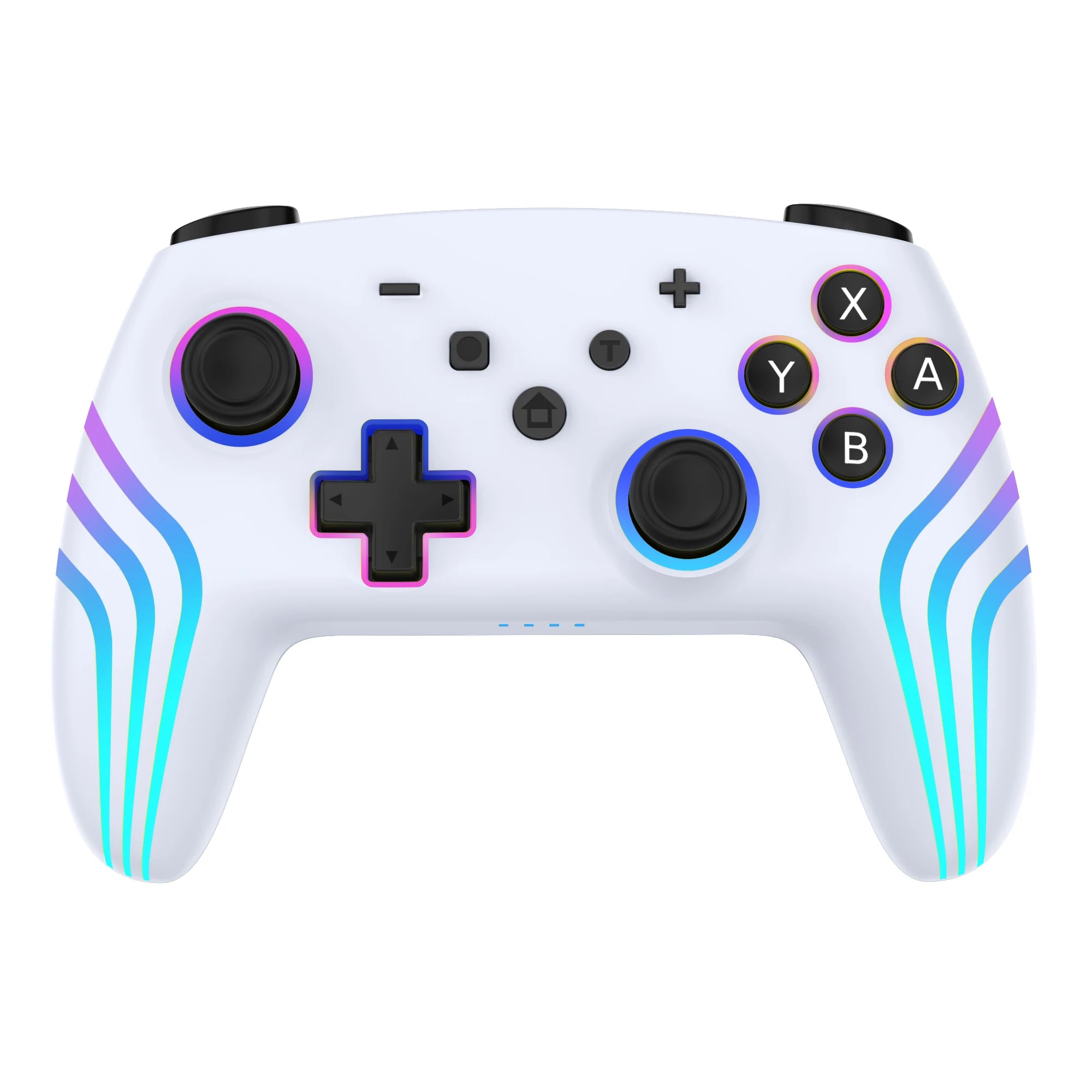

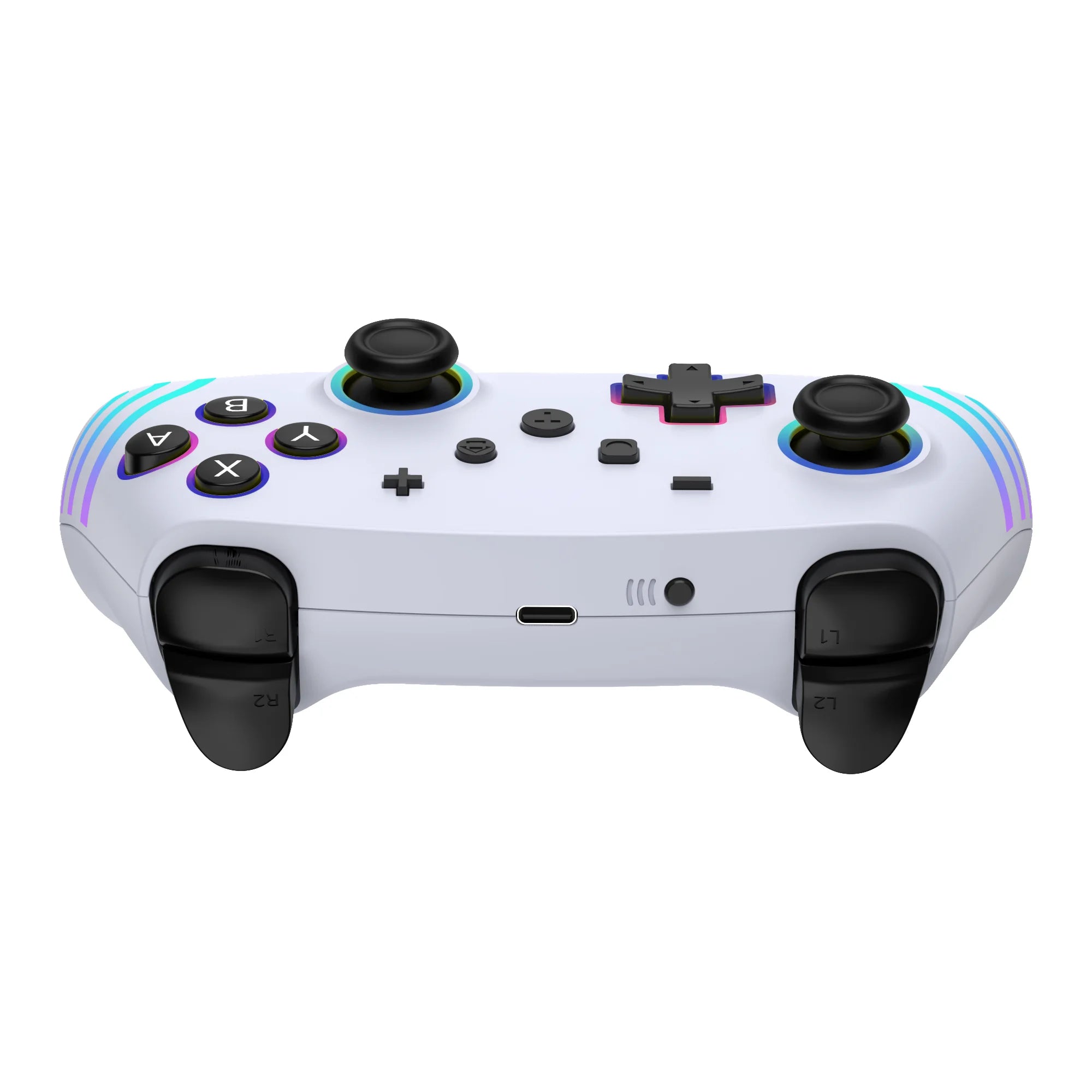

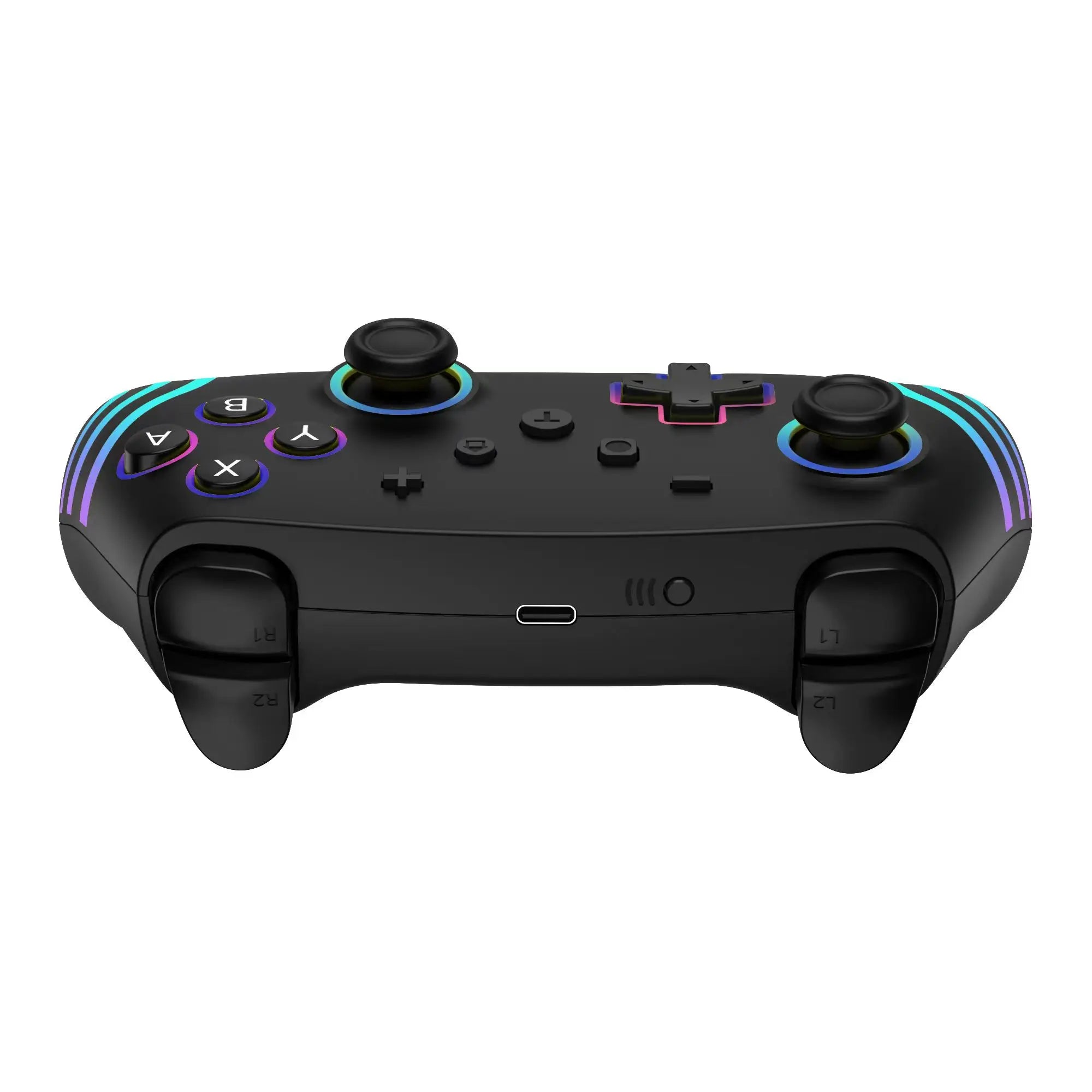

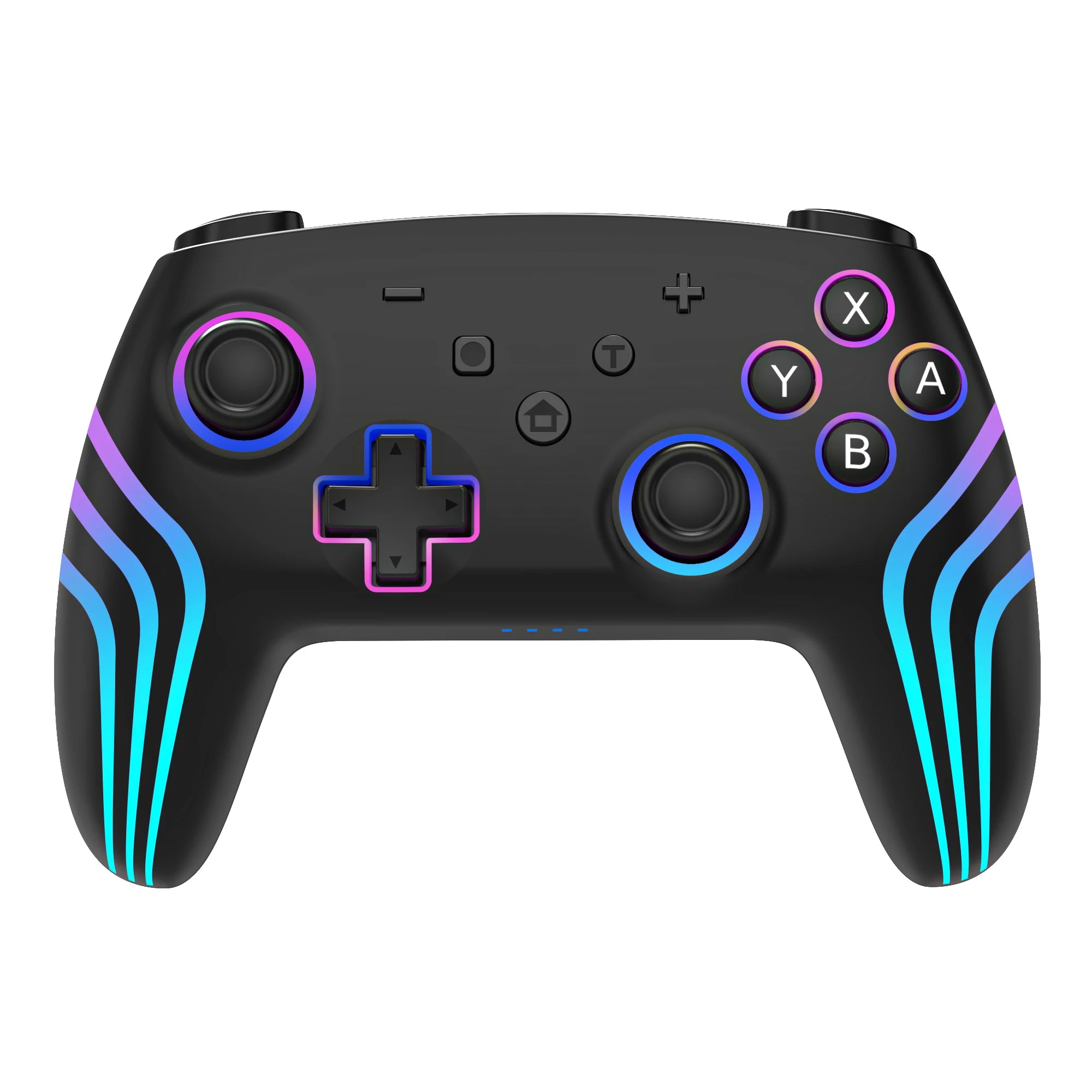

Model: SZ-933B White, SZ-933B Black

Elevate your gaming experience with the Wireless Controller for SZ-933B, a versatile, high-performance controller designed for seamless compatibility across multiple devices. Whether you're gaming on your Switch, Android, iOS, or PC, this controller delivers precision, customization, and convenience in one sleek package.

Key Funtion

Multi-Device Compatibility

Bluetooth Switch mode
Bluetooth standard Android Mode. (Note: In Android mode, the Controller has not vibration, axis functions.)
Bluetooth IOS protocol Android Mode
Bluetooth IOS Mode. (Note: The IOS device system need be 13.0 or above, the Controller has not vibration, axis
functions in this mode).
Bluetooth PC (X-INPUT) Mode
USB Mode: via PC USB port

Turbo Function

Adjustable turbo speeds (5Hz/10Hz/15Hz)
Auto-turbo mode and manual speed adjustment via TURBO + Right Stick (up/down).

Motor Vibration Control

4-level intensity adjustment (100%/75%/50%/0%) via TURBO + Left Stick (up/down).
Memory function retains vibration settings.

RGB Lighting Effects

Multiple modes: Dazzling Light, Single Color, Breathing Light, Breathing Cycle.
Color switching/brightness adjustment (LIGHT + L3/Arrow Keys).
On/Off toggle (long-press LIGHT 5s) with memory function.

Smart Connectivity

HOME button wakes controller and reconnects to Switch (auto-sleep after 15s if failed).
Mode memory retains last-used settings.

Power Management

Auto-sleep when idle for 5 minutes or Switch screen off.
Low-voltage warning (fast LED blink) and auto-sleep at critical battery level.

Calibration & Testing

3D Joystick Calibration: Via console interface.
Six-Axis Sensor Calibration: Through console or hardware shortcut (A + - + HOME).
Button Test Mode: Console-supported diagnostics.
Reset: Physical reset button for troubleshooting.

Technical Specifications

Battery: 3.7V 800mAh Li-ion (≈2.5h charging, LED indicators for status).
Sensors: Six-axis gyro.
Range: 6m wireless.
Power Consumption: 3V, 25–100mA (working), <5µA (standby).

What’s in the Box

1 x SWITCH Wireless Controller SZ-933B
1 x Charging Cable
1 x User Manual
